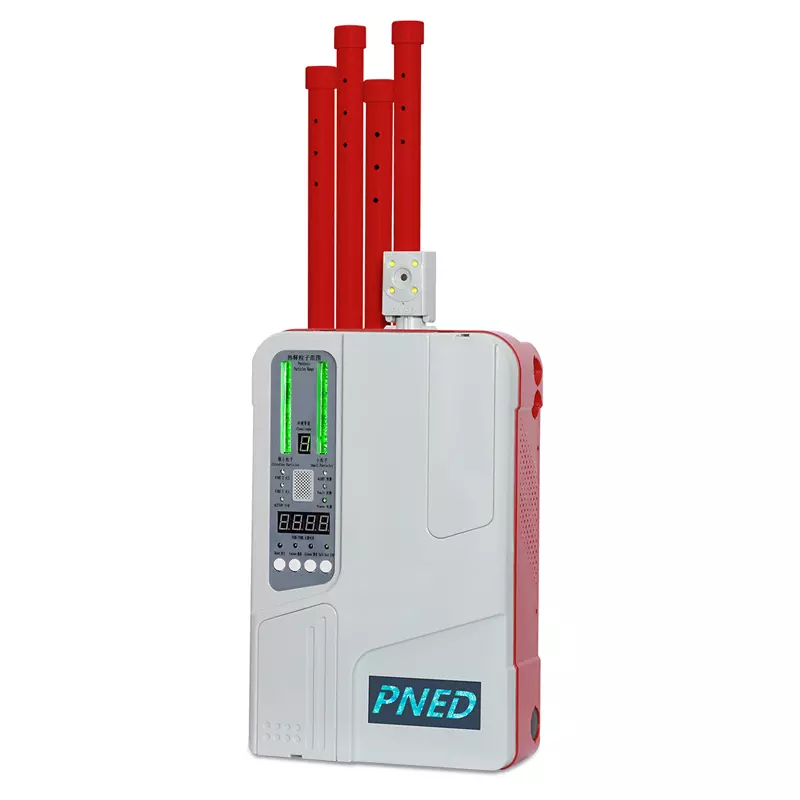

Product Details
Detection method: Laser
Number of channels: 4
Rated voltage: 24v
Power: 15.1w-27.1w
Pipeline length: 400m without U-shaped branches, 840m with U-shaped branches
Fire alarm levels: Warning, Action, Fire Alarm 1, Fire Alarm 2
Operating environment: -13-60℃, 5%-95%RH, no water condensation
Event Record: 20,000
Communication protocol: RS485
Sensitivity range: 0.005-15%obs/m
Number of detection chambers: 1
IP protection level: 40
Maximum protected area ㎡ : 5,120
Number of sampling holes (ClassA/B/C) : 40/80/120
