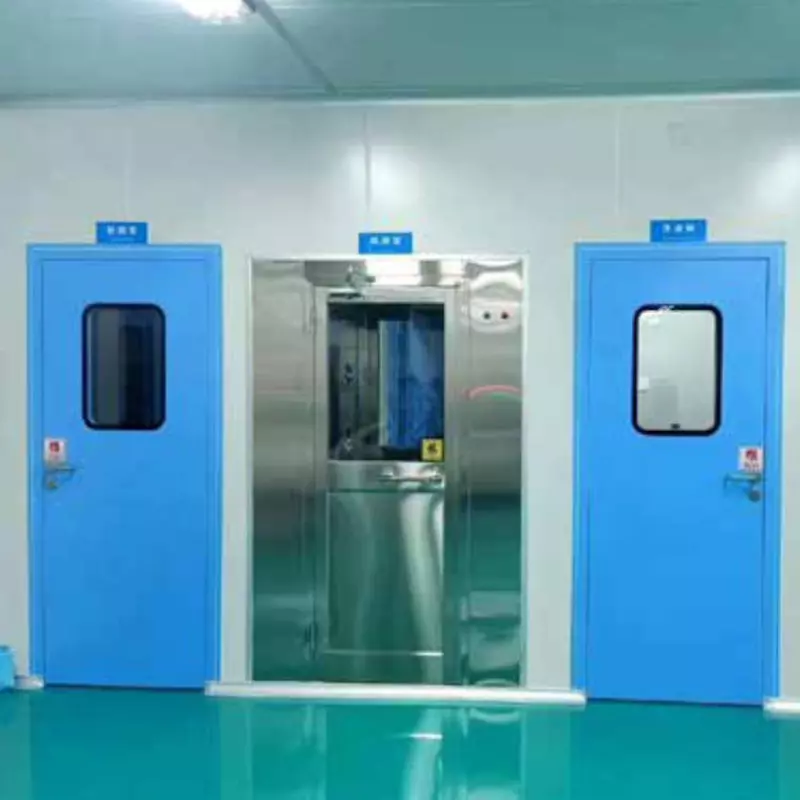

Stainless Steel Cleanroom Door
The steel door frame and door panel are both made in one piece, and the surface is treated with electrostatic spraying. The product has no seams, no welding points, no dead corners, and is overall smooth and flat, easy to clean and does not accumulate dust. This door is equipped with high-grade rubber and plastic sealing strips on three sides and an automatic lifting sweeping strip at the bottom, which ensures strong air tightness and effectively guarantees the purification effect inside the room. The observation window is made of double-layer tempered glass with two-centimeter printed black (white) edges around it. The glass is flush with the surface of the door panel, which is not only sealed and firm but also beautiful and attractive. The door panel thickness is 40mm and 50mm. The core material is first filled with high-strength flame-retardant core material, fully meeting the fire protection requirements of the purification workshop.
This door is suitable for installation on walls of 50mm-100mm type hand-made color steel plates and various sizes of civil construction walls. The door frame and the wall are connected with "Zhong" aluminum, which is simple to operate. The door frame and the wall are flush on both sides. Whether from the perspective of strength or aesthetics, it is the best choice for the purification workshop. The product size, material and special requirements can all be customized according to the customer's needs.
| Product Name | Material |
| Door frame | 1.2mm thick environmentally friendly galvanized sheet |
| Door panel | 1.0mm thick environmentally friendly galvanized sheet |
| Window specification | 450*730mm/230*730mm/400*600mm double-layer rounded corner tempered glass |
| Surface treatment | Steel plate powder coating |
| Filler | Paper honeycomb/aluminum honeycomb |
| Door hardware | Hinges, split handle locks, sealing strips, underground lifting sweeping strips |
|
It complies with the relevant national requirements for the three properties (air tightness, water tightness, wind pressure resistance) and antibacterial properties of airtight doors : ① The air tightness meets the sixth level of GB/T7106-2008 ② The water tightness complies with Grade 4 of GB/T7106-2008 (stable pressure method), and the wind pressure resistance complies with Grade 8 of GB/T7106-2008. ④ The antibacterial rate complies with Grade I of GB/T21866-2008 (Escherichia coli, Staphylococcus aureus). |
|
